mixing machine

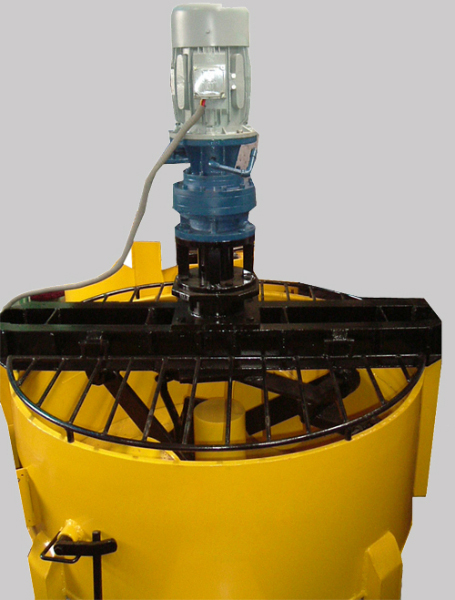

Vertical mixer

【Intro】:1,The mixer is mainly used for raw material mixing. 2. It can stand with wear and tear. 3,It is line with polypropylene plate or stainless steel plate in the mixing tank, which dvoids material sticking and make the machine wear-resistant,corrosion-resistant in use. 4,The mixer is adopt the cycloidal pinwheel reducer, it have the advantages of compact structure, easy operation,unloading transportation is convenient.

Sales Hotline:+86 18637192252

We're here to help:

Easy ways to get the answers you need.

Features

Introduction of Vertical mixer, paddle mixer,liquid fertilizer mixer, fertilizer paddle mixer:
The mixer is mainly used for raw material mixing.  It can stand with wear and tear

Application of Vertical mixer, paddle mixer,liquid fertilizer mixer, fertilizer paddle mixer:

1,The mixer is mainly used for raw material mixing.

 2. It can stand with wear and tear.

 3,It is line with polypropylene plate or stainless steel plate in the mixing tank, which dvoids material sticking and make the machine wear-resistant,corrosion-resistant in use.

 4,The mixer is adopt the cycloidal pinwheel reducer, it have the advantages of compact structure, easy operation,unloading transportation is convenient.


Advantages of Vertical mixer, paddle mixer,liquid fertilizer mixer, fertilizer paddle mixer:
 Parts of the machine we all use National Standard which ensure long service life of Organic Fetilizer Pan Mixer , Paddle Mixer, Liquid Fertilizer Mixer.

 1.  Lining of the disc mixer use stainless steel plate or polypropylene plate ( it should according to different raw material nature), therefore it is not easy sticky materials.

 2. High abrasion resistance.

 3.  Working stable with fast feeding speed performance.

 4. Short mixing time with high production efficiency.

 5. High material mixing degree.

 6. Low investment with taking effect quickly.

 7. Small footprint, simple operation which only need 2-3 person.

Application

1. Mainly used in mixing material.
2. Polypropylene lining plate and stainless steel plate, is not easy to touch material wear-resisting.
3. USES the cycloidal reducer, easy to operate, stir well, unloading is convenient.

Technical Data

Tyoe

Mixer

Rotate speed

Power

Capacity

Outer size

Weight

Diameter

Height

LxWxH

Unit

mm

mm

R/m

Kw

T/h

mm

kg

PJ1600

1600

400

12

5.5

3-5

1612x1612x1368

1200

PJ1800

1800

400

10.5

7.5

4-6

1900x1812x1368

1400

PJ2200

2200

500

10.5

11

6-10

2300x2216x1503

1668

PJ2500

2500

5500

9

15

10-16

2600x2516x1653

2050
