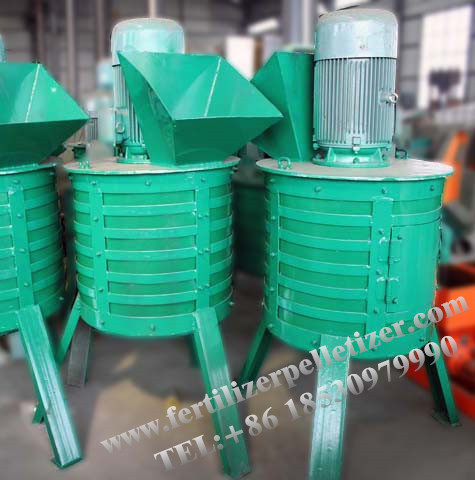

Vertical Chain Crusher
【Intro】：Chain crusher, which is a kind of Vertical Chain Crusher,It is specially designed to crush large fertilizer particles and returning fertilizers with less than 6％ moisture content in compost production.
Sales Hotline:+86 18637192252
We're here to help:
Easy ways to get the answers you need.
Features
Brief Introduction of Vertical Chain Crusher :
You can combine two crushers to improve efficiency. The motor is vertical installed beside the feeder. The motor shaft is through crushing chamber and connects with the main shaft. On the main shaft there are two groups of chain plates with a certain distance. The chain plates are made of carbon steel or stainless steel and they are synchro-speed designed. Each group of chain plates are composed of two same plates,one is on upper side and the other is lower. There are six chain holes on every piece of chain plate and these holes are in the same vertical line. The chains go through the holes and hang crisscross. With the main shaft rotates, the chains on the plates crush large fertilizer particles.
You can combine two crushers to improve efficiency. The motor is vertical installed beside the feeder. The motor shaft is through crushing chamber and connects with the main shaft. On the main shaft there are two groups of chain plates with a certain distance. The chain plates are made of carbon steel or stainless steel and they are synchro-speed designed. Each group of chain plates are composed of two same plates,one is on upper side and the other is lower. There are six chain holes on every piece of chain plate and these holes are in the same vertical line. The chains go through the holes and hang crisscross. With the main shaft rotates, the chains on the plates crush large fertilizer particles.
Application
Working Principle of Vertical Chain Crusher :The motor drives chain plates rotating and due to the centrifugal force, the chains whip fast and form two turning surfaces. When the fertilizer slump from feeding inlet, it is cracked down by the upper chain and become smaller particles, at the same time, it is thrown onto the inner liner and drop to the lower chain plates. Then the lower chain also impacts smaller particles and strike it to smash. That means the fertilizer materials crushing process is such a model like struck-crushed-thrown-struck-smashed.
Technical Data
| Model | Max. feeding size(mm) |
Granularity Size (mm) |
Motor power (kw) |
Producing Capacity (T/H) |
| LP50 | ≤60mm | <Φ0.5mm | 11kw | 1-3 |
| LP60 | ≤60mm | <Φ0.5mm | 15kw | 3-5 |
| LP80 | ≤60mm | <Φ0.5mm | 18.5kw | 5-8 |
