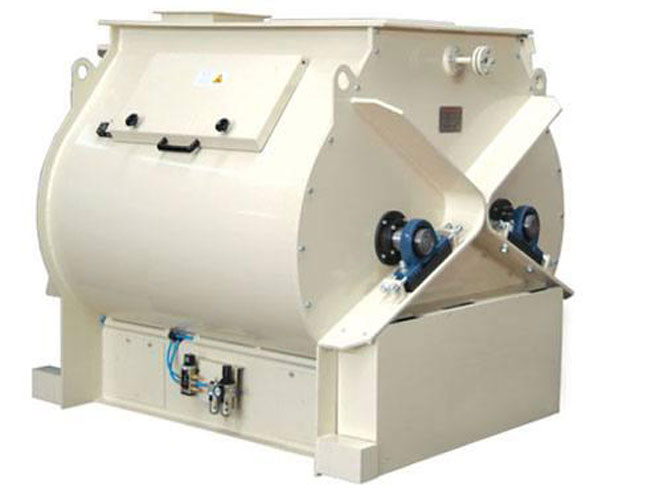

Double shaft mixer
【Intro】：The mixing chamber is W horizontal shell shape, Double shaft and many paddles, The spraying system ( spray nozzle & fittings) is on top of mixer can meet light and heavy bulk density materials mixing, improve the liquid atomizing and prevent from agglomerating.
Sales Hotline:+86 18637192252
We're here to help:
Easy ways to get the answers you need.
Features
Application
especilzed in mixing dry powder chemical and liquid chemical materials together, the liner could adopt the anti-errosion material. it's with stable working performace and long life time. the capaicty range from 100kg per bacth to 1000 kg per batch.can used to produce npk fertilizer, various compound fertilizer,etc.
Technical Data
|
Type |
Volume |
Capacity/batch |
Mixing time |
Homogeneity (CV≤%) |
Power (Kw/h) |
|
SZHSJ0.2 |
0.2 |
100 |
30-120 |
5 |
4 |
|
SZHSJ0.5 |
0.5 |
250 |
7.5 |
||
|
SZHSJ1 |
1 |
500 |
11 |
||
|
SZHSJ2 |
2 |
1000 |
18.5 |
