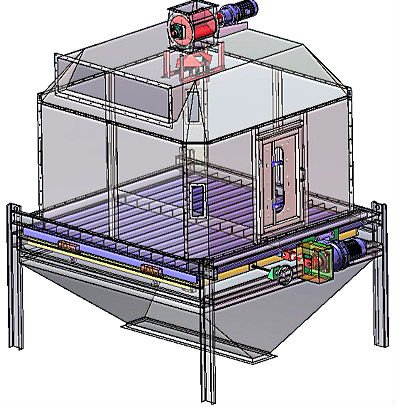

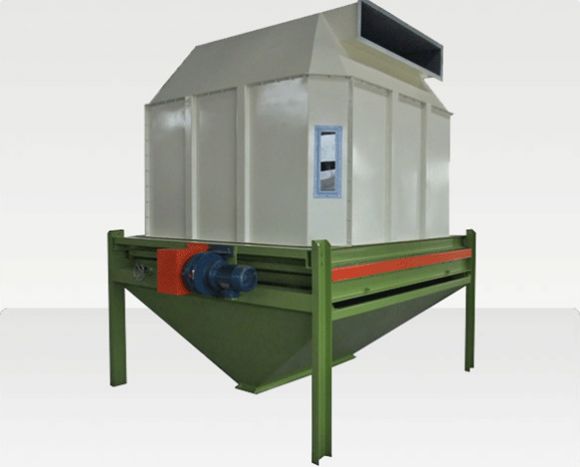

Counterflow Cooling Machine
【Intro】：The conterflow cooling principle is adopted to cool the pellets with high temperature and moisture , so as to avoid the pellet surface crack caused by sudden cooling produced by direct touching between cool air and hot pellets.
Sales Hotline:+86 18637192252
We're here to help:
Easy ways to get the answers you need.
Features
Advantage of Counterflow Cooling Machine:
The conterflow cooling principle is adopted to cool the pellets with high temperature and moisture , so as to avoid the pellet surface crack caused by sudden cooling produced by direct touching between cool air and hot pellets. Airlock feeder is adopted for feeding , with large air volume , resulting in good cooling effect.
Slide type or swing type discharging mechanism, smooth and reliable running , no material deposits.
Low energy consumption and easy operation.
Application of Counterflow Cooling Machine:
Feed cooler is very important part in feed producing line. Temperature of granular feed from pellet machine is 80-100 Celsius, that could not be packed directly. Usually we equipped cooling system for the line to cooling granular feed by counterflow .
The Counterflow Cooler also should be equipped with cyclone dust collector and fans.
The conterflow cooling principle is adopted to cool the pellets with high temperature and moisture , so as to avoid the pellet surface crack caused by sudden cooling produced by direct touching between cool air and hot pellets. Airlock feeder is adopted for feeding , with large air volume , resulting in good cooling effect.
Slide type or swing type discharging mechanism, smooth and reliable running , no material deposits.
Low energy consumption and easy operation.
Application of Counterflow Cooling Machine:
Feed cooler is very important part in feed producing line. Temperature of granular feed from pellet machine is 80-100 Celsius, that could not be packed directly. Usually we equipped cooling system for the line to cooling granular feed by counterflow .
The Counterflow Cooler also should be equipped with cyclone dust collector and fans.
Application
The conterflow cooling principle is adopted to cool the pellets with high temperature and moisture , so as to avoid the pellet surface crack caused by sudden cooling produced by direct touching between cool air and hot pellets. Airlock feeder is adopted for feeding , with large air volume , resulting in good cooling effect.Technical Data
| Model Parameters |
SKLN1.5 | SKLN2.5 | SKLN4 | SKLN6 | SKLN8 |
| Volume(m³) | 1.5 | 2.5 | 4.0 | 6.0 | 8.0 |
| Capacity(t/h) | 3 | 5 | 10 | 15 | 20 |
| Cooling time(min) | Less than 10-15Mins | ||||
| Temperature after Cooling(°C) | Not higher than ambient temperature +3~5 | ||||
| Aspiration(m³/min.t) | 34 | ||||
| Power(kw) | 0.75 | 1.10 | 1.50 | 1.50 | 1.50 |
| Power of Airlock (kw) | 0.55 | 0.75 | 1.1 | 1.1 | 1.5 |
