Excellent case

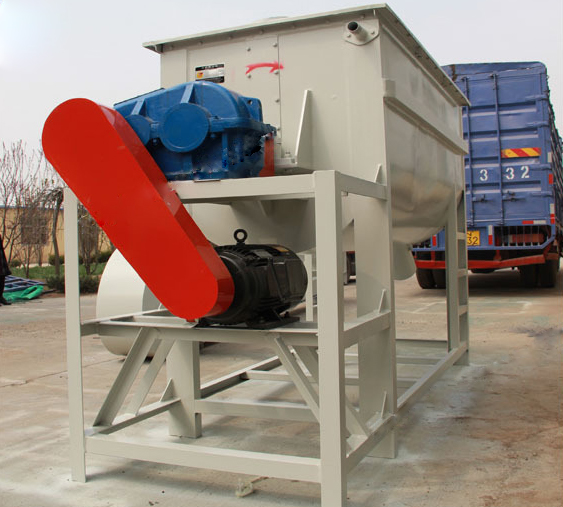

Horizontal mixer
【Intro】：Horizontal Mixer also called horizontal fertilizer mixer, horizontal fertilizer mixing machine,paddler mixer,fertilizer paddle mixer and mixing machine ,which is designed in double shaft model for large fertilizer mixing capacity. It is newly developed high efficiency powder blending equipment in many fields such as pharmacy,food,organic fertilizer,health care products,dyestuff,building materials,refractory material,resin glass and nuclear materials,etc.
Sales Hotline:+86 18637192252
We're here to help:
Easy ways to get the answers you need.
Features
Horizontal Mixer Features
1.Multifunctional.Applied to many heavy industry fields such as chemicals,pharmacy,food,fertilizer,dyestuff,construction materials,resin glass,ect.
2.High mixing speed and uniformly mixing,low noise.
3.Reduction gears is matched to make sure stable mixing.
4.Carbon steel materials,durable and simple maintenance cost.
5.Low energy consumption,simple operation.
Horizontal mixing machine is equipped with a horizontal cylinder. There are two main shafts on which welded many small shovels for blending. The shovels are made of robust carbon steel which is thick enough to blend and crush heavy duty fertilizer particles.Horizontal engine drives main shafts rotating. There is polypropylene material coated on the inner liner to prevent corrosion. There is reduction gears matched to ensure stable performance. The tactical design of mixing drum and rotating shafts make materials completely and evenly blending.
How to Mix Fertilizer Particles
The double shaft works in opposite direction towards the liner direction. They both mix fertilizer particles from the center part to each other’s liner part and cycle like this. The shovels are strong enough to mix 3-15 tons per hour. There are conveyor belt to transfer mixed fertilizer to the next process.
Application
Horizontal Mixer,It is newly developed high efficiency powder blending equipment in many fields such as pharmacy,food,organic fertilizer,health care products,dyestuff,building materials,refractory material,resin glass and nuclear materials,etc.Technical Data
|
Model |
Capacity |
Power |
Diameter |
Length |
|
WJ-700 |
3-6t/h | 7.5kw | 700mm |
1500mm |
| WJ-900 | 5-10t/h | 11kw | 900mm | 1500mm |
| WJ-1000 | 10-15t/h | 15kw | 1000mm | 2000mm |
